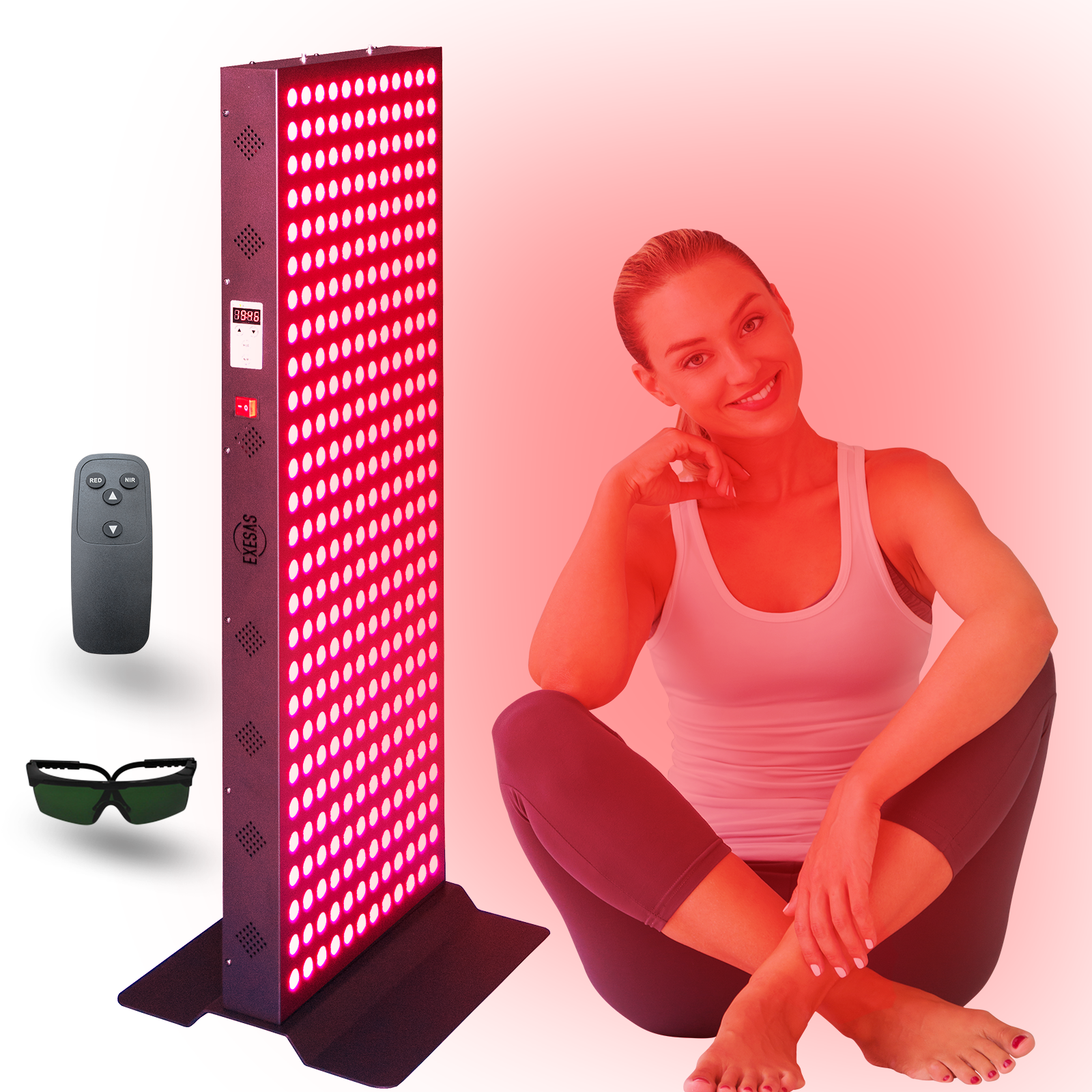

The EXESAS 324 LED red light therapy panel sits between the 200 LED and 800 LED models in the EXESAS lineup, offering a wider 41" × 15" panel surface with 324 dual-chip 42mil LEDs at 5W each — a power class of 1620W and an actual power consumption of 470W. Four wavelengths — 630nm, 660nm, 810nm, and 850nm — are delivered simultaneously through the dual-chip LED array, with red and infrared channels operable independently or together. The panel is rated at over 198mW/cm² irradiance with no EMF output and a 30° beam angle. It supports a linkable design for connecting two or more panels to expand coverage, and the package includes a remote control, base stand, door mount, adjustable hanging kit, buckle, protective eyewear, built-in timer, LCD control panel, and integrated cooling fans. A 2-year warranty is included.
Why Customers Choose This Product
- 324 dual-chip 42mil LEDs at 5W each — 1620W power class, 470W actual consumption
- Four wavelengths: 630nm, 660nm (red) + 810nm, 850nm (near infrared)
- Red and infrared channels operable independently or simultaneously
- Wider panel surface: 41" × 15" for broader lateral coverage than the 200 LED model
- High irradiance: over 198mW/cm²
- No EMF output
- 30° beam angle, no flicker
- Meanwell LED drivers — used in professional-grade medical equipment
- Linkable design — two or more panels can be connected to expand coverage area
- Remote control included for hands-free session management
- Base stand, door mount, and adjustable hanging kit all included
- TV stand mounting via rear holes (vertical or horizontal)
- Built-in timer, LCD control panel, and integrated cooling fans
- Protective eyewear included
- 2-year warranty
Product Highlights
Four Wavelengths: 630nm, 660nm, 810nm & 850nm
The panel emits two visible red wavelengths (630nm and 660nm) and two near infrared wavelengths (810nm and 850nm). Red and infrared channels can be activated independently or together, giving you control over which wavelengths are active during each session.
324 Dual-Chip 42mil LEDs

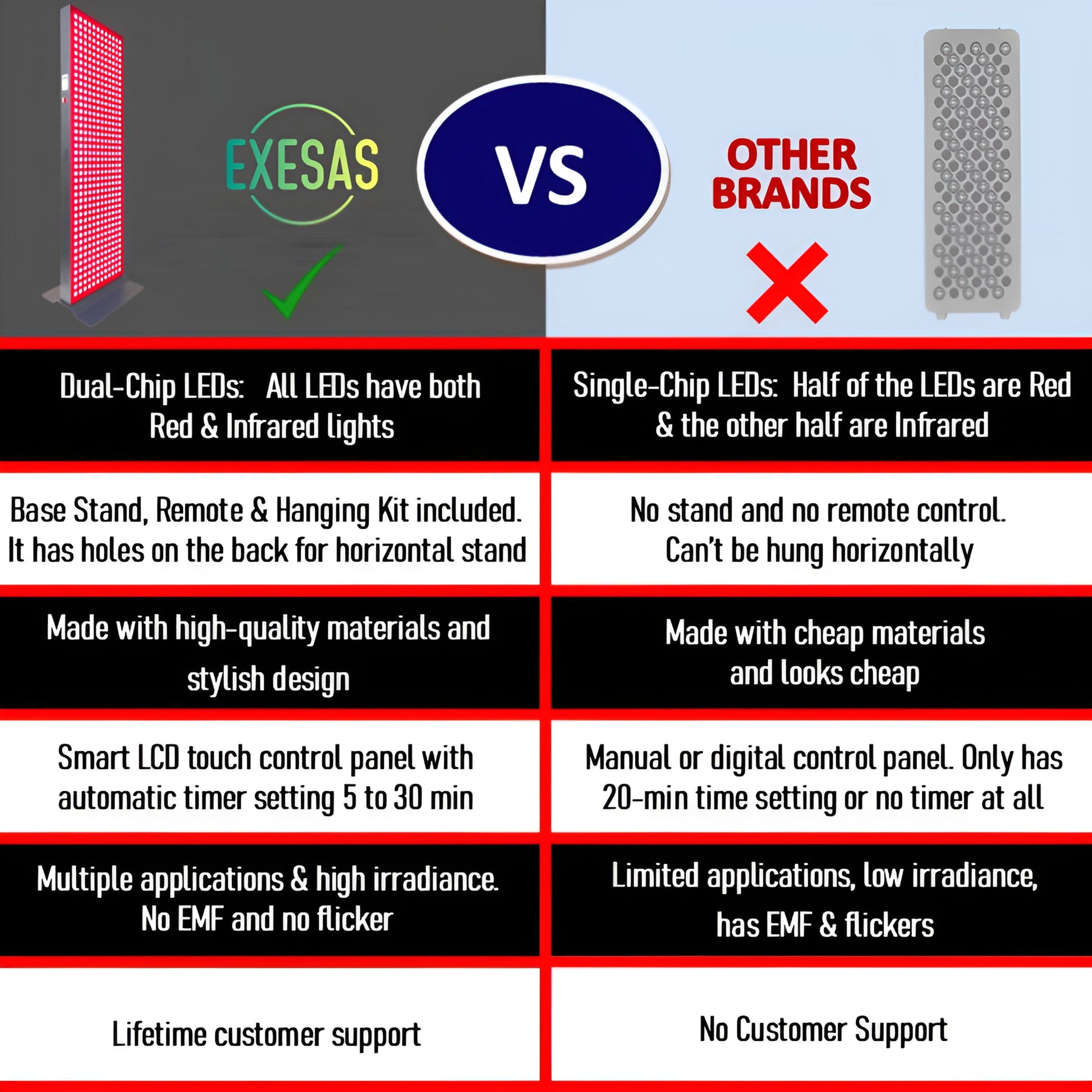

Each of the 324 LEDs uses a dual-chip 42mil configuration at 5W per LED. The 42mil chip size is larger than the 35–38mil single-chip LEDs used in many competing panels, contributing to higher irradiance output. The dual-chip design means each LED emits across two wavelengths simultaneously.
1620W Power Class / 470W Actual Consumption
The 1620W power class reflects the combined rated output of all 324 LEDs at 5W each. Actual power consumption during operation is 470W — the figure relevant for assessing your outlet and circuit requirements. At 470W, a dedicated circuit may be advisable depending on your home’s electrical configuration.
Wider 41" × 15" Panel Surface
At 41 inches tall and 15 inches wide, this panel offers a broader lateral coverage area than the 200 LED model (36" × 8.5"), making it better suited for sessions targeting wider body areas or for users who want more coverage per session without linking multiple panels.
Linkable Panel Design
Two or more EXESAS 324 LED panels can be connected together to expand the total coverage area and combined output. This allows you to start with a single panel and scale up incrementally without replacing the unit.

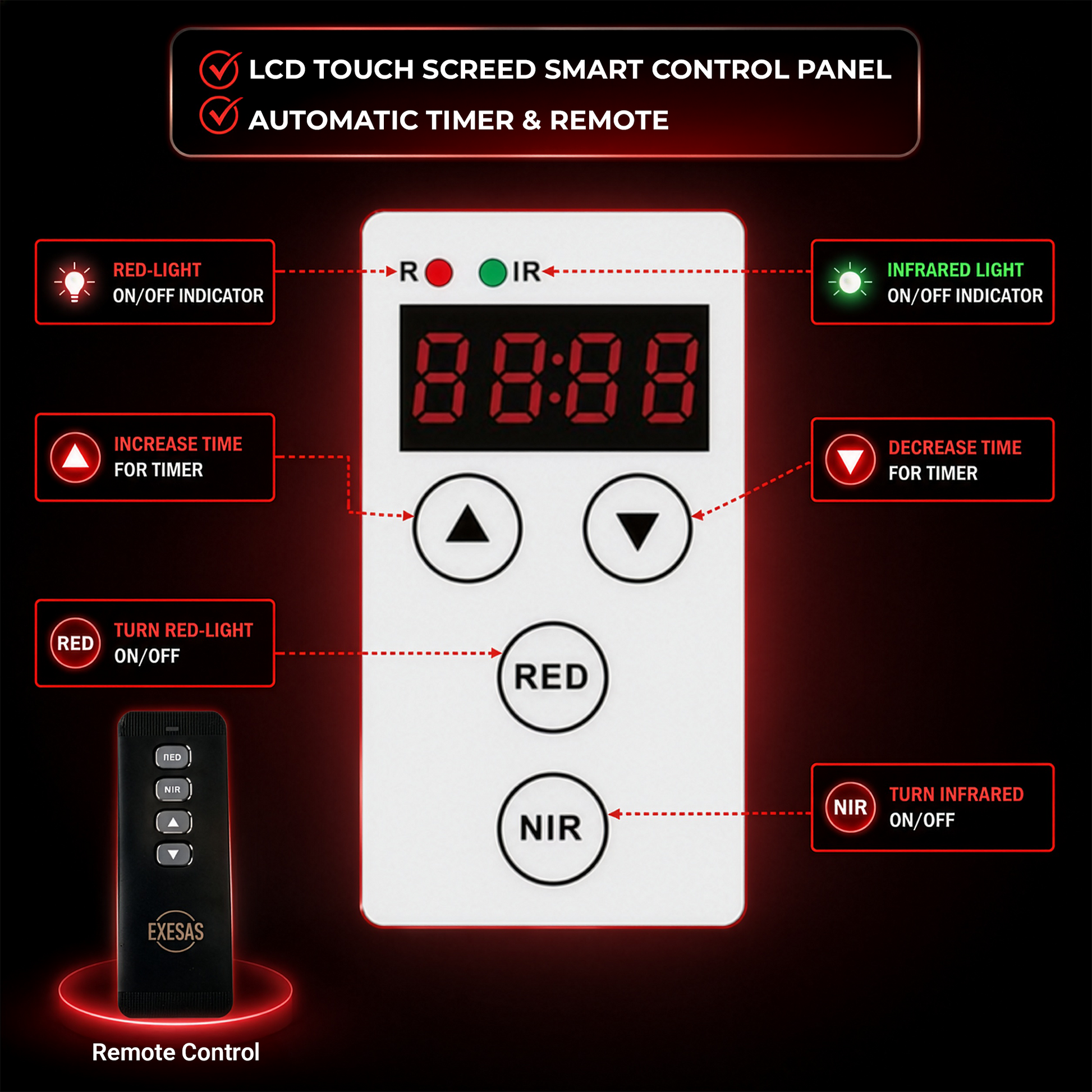

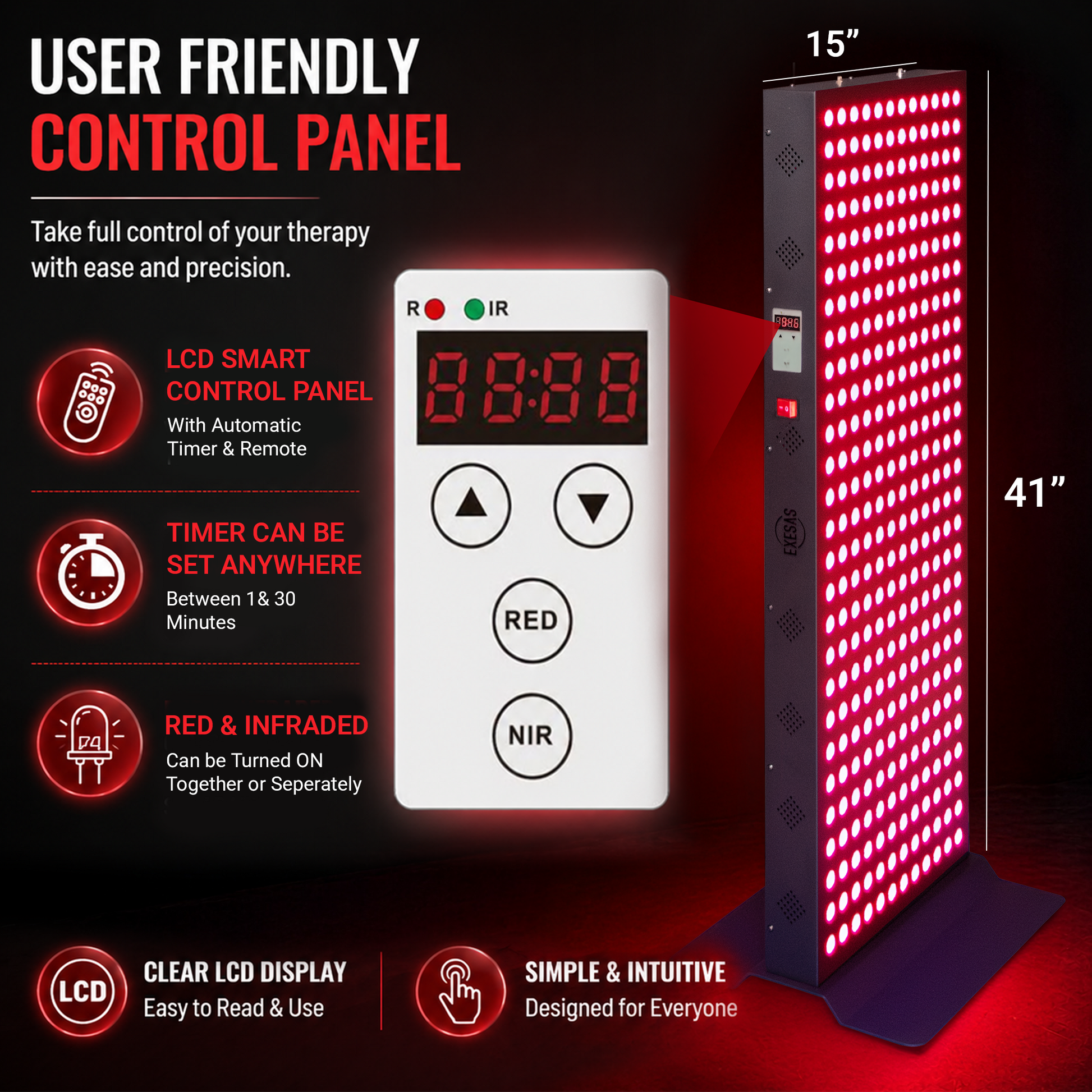

Remote Control & Built-In Controls
A remote control is included for hands-free session management from a distance. The panel also features a built-in timer and LCD control panel for direct on-device operation without the remote.
Meanwell LED Drivers
Meanwell drivers are used in professional-grade medical equipment and are specified here for consistent, stable power delivery to the LEDs — a notable component upgrade compared to unbranded drivers used in many lower-cost panels.

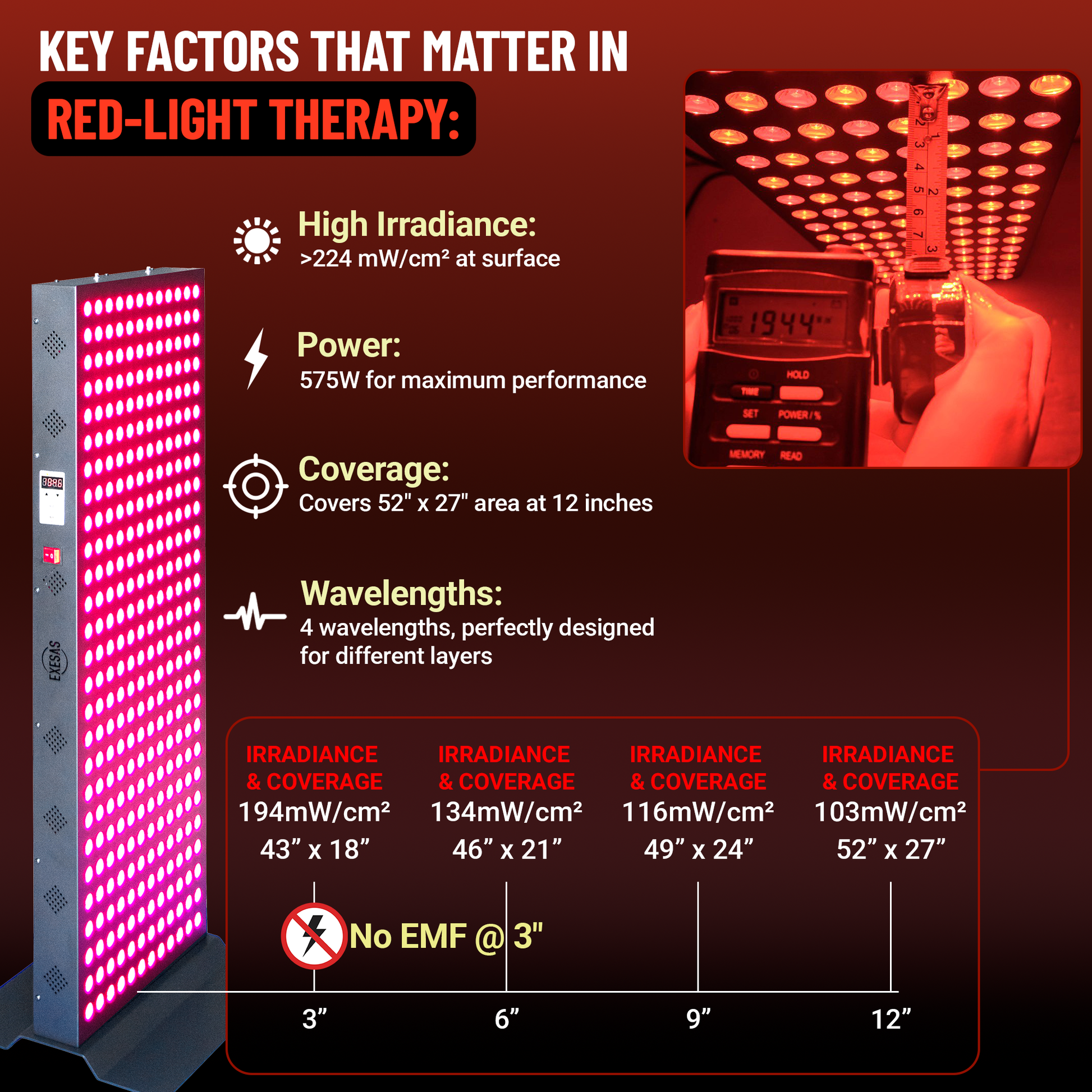

High Irradiance: Over 198mW/cm², No EMF
The panel is rated at over 198mW/cm² irradiance with no EMF output during operation. The 30° beam angle focuses light output toward the treatment area rather than dispersing it broadly.
Flexible Mounting Options
Rear mounting holes allow the panel to be attached vertically or horizontally to a compatible TV stand. A base stand, door mount, and adjustable hanging kit are also included, providing four distinct setup configurations without additional hardware.

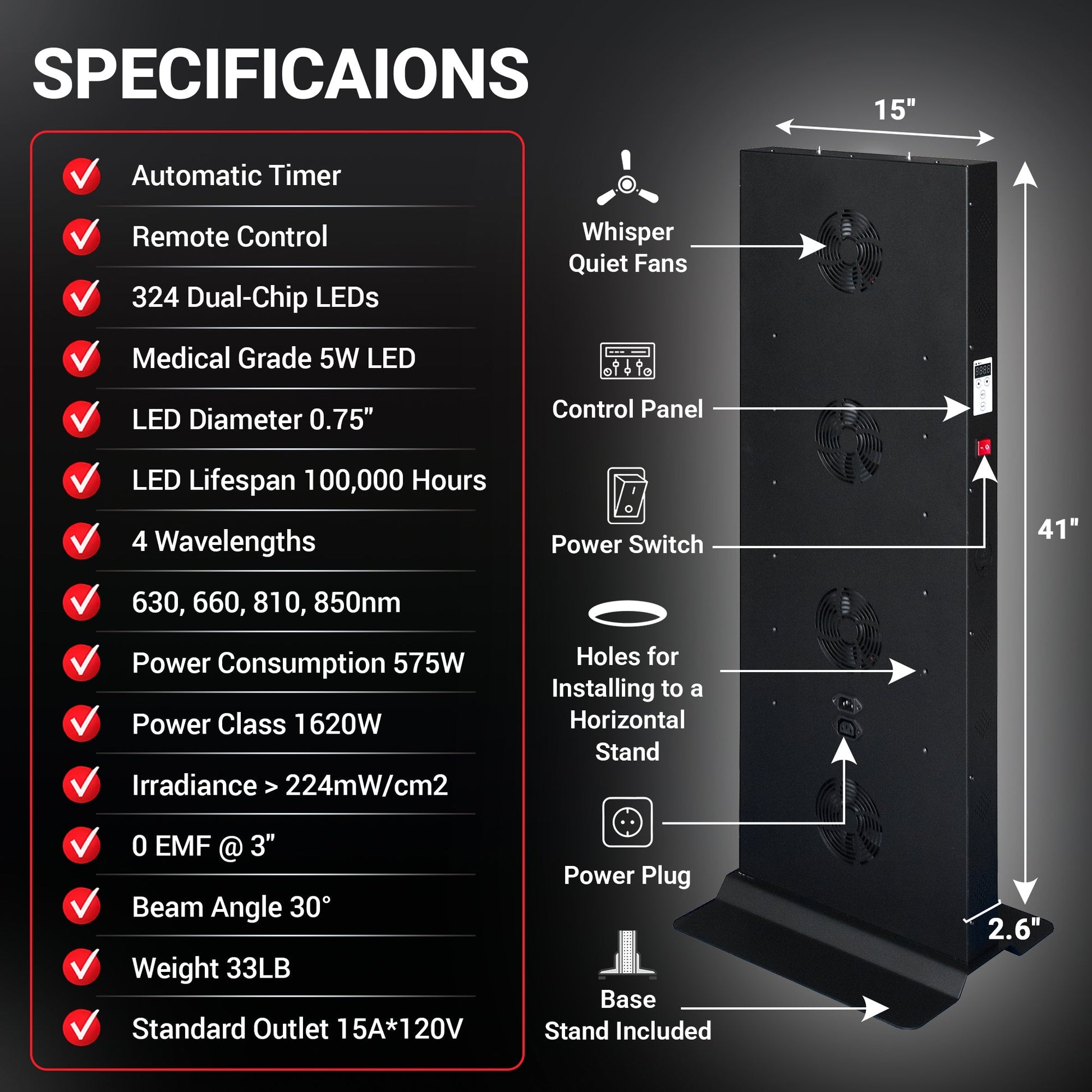

Specifications
| Brand | EXESAS |
|---|---|
| SKU | EXESAS-003 |
| LED Count | 324 Dual-Chip LEDs |
| LED Chip Size | 42mil Dual-Chip |
| Power per LED | 5W |
| Power Class | 1620W |
| Actual Power Consumption | 470W |
| Wavelengths | 630nm, 660nm (Red) + 810nm, 850nm (Near Infrared) |
| Channel Control | Red and Infrared Independently or Simultaneously |
| Irradiance | Over 198mW/cm² |
| Beam Angle | 30° |
| EMF | No EMF |
| Flicker | No Flicker |
| LED Drivers | Meanwell (Professional-Grade) |
| Controls | Built-In Timer + LCD Control Panel + Remote Control |
| Cooling | Built-In Cooling Fans |
| Panel Dimensions | 41" × 15" × 2.6" |
| Device Weight | Approx. 39 lbs |
| Linkable | Yes — Two or More Panels Can Be Connected |
| Mounting Options | Base Stand, TV Stand (Vertical or Horizontal via Rear Holes), Door Mount, Adjustable Hanging Kit |
| Country of Origin | United States |
| HS Code | 851310 |

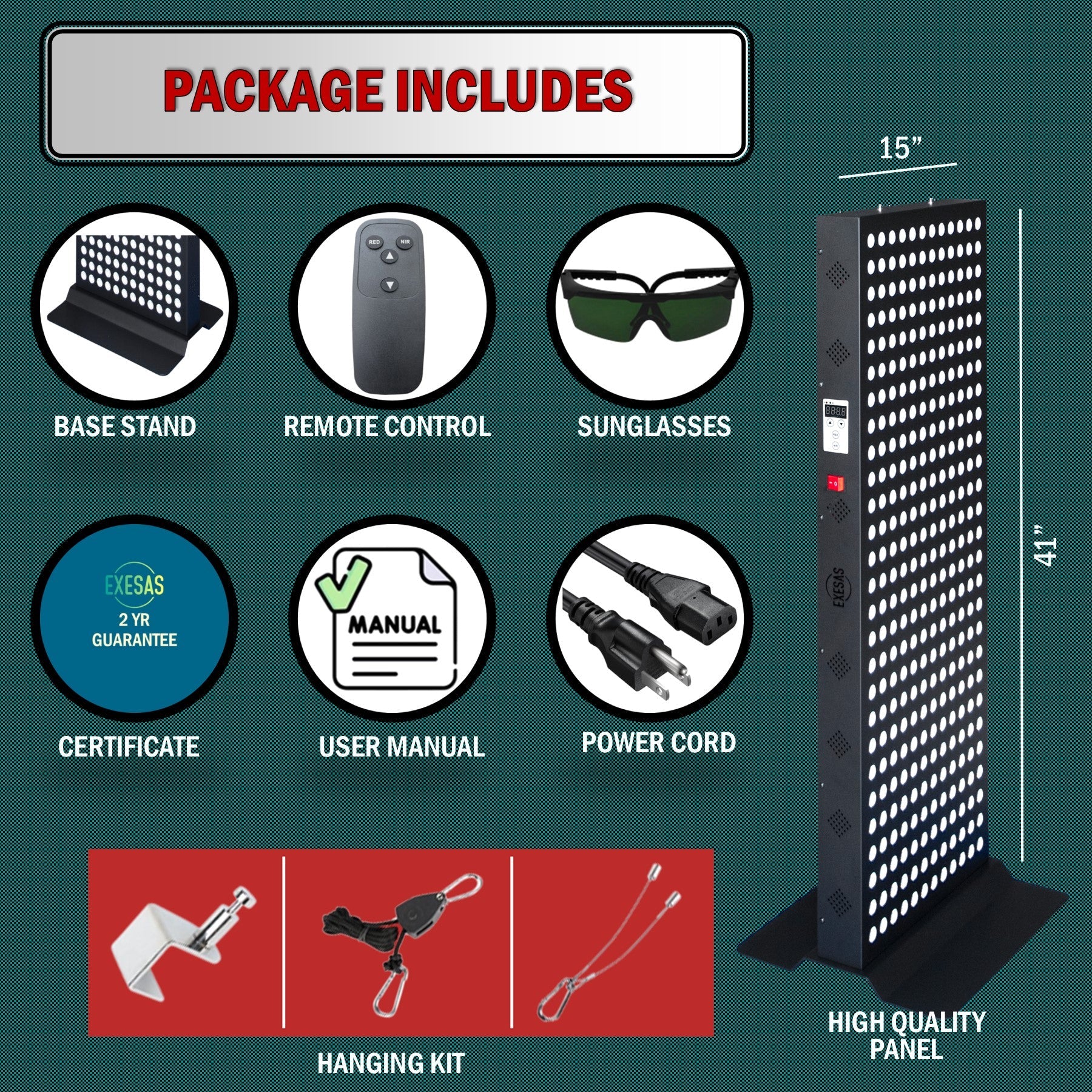

| Included Accessories | Remote Control, Base Stand, Door Mount, Adjustable Hanging Kit, Buckle, Protective Eyewear, User Manual |
| Warranty | 2 Years |
| UPC | 196852064465 |
Ideal For
- At-home red and near infrared light therapy with four-wavelength coverage in a wider 41" × 15" panel
- Users who want broader lateral coverage than the 200 LED model without stepping up to the full 65" × 19" 800 LED panel
- Those who want to start with one panel and expand coverage by linking additional units later
- Home setups where a 470W actual draw is manageable but a 1000W draw (800 LED model) is not
- Users who want remote control operation alongside built-in on-device controls
Important Information
- Do not look directly into the LED panels during operation. Protective eyewear is included in the package and should be worn during all sessions. The 810nm and 850nm near infrared wavelengths are largely invisible to the naked eye.
- Near infrared light (810nm, 850nm) is largely invisible to the naked eye. Do not assume the device is off or inactive based on visible light output alone.
- Ensure the base stand is fully secured and stable before each free-standing session. Do not leave the panel unattended in an unsecured position.
- When mounting to a TV stand, verify that the stand is rated to support the panel’s weight (approx. 39 lbs) and that the mounting hardware is fully secured before use.
- When using the door mount or hanging kit, verify that the mounting surface and hardware can safely support the panel’s weight before use.
- When linking multiple panels, follow the included instructions for safe electrical connection. Do not exceed the rated connection capacity specified in the user manual. Combined power draw increases with each additional panel connected.
- Actual power consumption is 470W. Verify that your outlet and circuit are rated for this load before first use. A dedicated circuit may be advisable depending on your home’s electrical configuration.
- This device is intended for general wellness use only. It is not a medical device and is not intended to diagnose, treat, cure, or prevent any condition.
- Consult a qualified healthcare provider before use if you have photosensitivity, are taking photosensitizing medications, have a history of skin cancer, or have any other relevant medical condition.
- Start with shorter sessions and increase duration gradually based on your comfort and tolerance.
- Keep out of reach of children. Adult supervision is required during all sessions.
- Do not use while sleeping or unattended.
Frequently Asked Questions
How does the 324 LED model compare to the other EXESAS panels?
The EXESAS lineup includes four panel sizes. The 80 LED (14.5" × 8.25") is the entry-level model with 400W power class and 175W actual consumption. The 120 LED (24.5" × 8.25") steps up to 600W power class and 175W actual consumption. The 200 LED (36" × 8.5") offers 1000W power class and 265W actual consumption with a remote and base stand. The 324 LED (41" × 15") is the upper-mid tier at 1620W power class and 470W actual consumption, with a significantly wider panel surface. The 800 LED (65" × 19") is the large-format full-body option at 4000W power class and 1000W actual consumption. All models share the same four wavelengths, dual-chip 42mil LEDs, and Meanwell drivers.
What are the four wavelengths, and can I use them separately?
This panel emits 630nm and 660nm in the visible red range, and 810nm and 850nm in the near infrared (NIR) range. The red (630nm, 660nm) and infrared (810nm, 850nm) channels can be activated independently or simultaneously using the remote control or the on-device LCD control panel.
What is the difference between the 1620W power class and the 470W actual consumption?
The 1620W power class reflects the combined rated output of all 324 LEDs at 5W each (324 × 5W = 1620W). This is a measure of the panel’s light output capacity. Actual power consumption — the electricity drawn from your outlet during operation — is 470W. Use the 470W figure when assessing your outlet and circuit requirements.
Why is the 324 LED panel wider than the 200 LED panel?
The 324 LED panel measures 41" × 15", compared to the 200 LED panel at 36" × 8.5". The additional width (15" vs. 8.5") provides broader lateral coverage per session, which is useful for targeting wider body areas without needing to reposition the panel or link multiple units. The 324 LED model is the first in the EXESAS range to offer a significantly wider panel surface.
What does "linkable" mean, and how does it work?
The linkable design allows two or more EXESAS 324 LED panels to be connected together electrically, expanding the total coverage area and combined output. This allows you to start with a single panel and add more over time. Refer to the included user manual for connection instructions and the maximum number of panels that can be linked safely.
Does this panel require a dedicated circuit?
The panel draws 470W of actual power during operation. Depending on your home’s electrical configuration and what else is on the same circuit, a dedicated circuit may be advisable. If you plan to link multiple panels together, the combined power draw will increase accordingly. Consult a qualified electrician if you are unsure about your circuit capacity.
Is protective eyewear included?
Yes. Protective eyewear is included in the package. We strongly recommend wearing it during all sessions. Near infrared wavelengths (810nm, 850nm) are largely invisible to the naked eye, meaning you may not instinctively look away even when those channels are active.
What does the warranty cover?
The EXESAS panel includes a 2-year warranty covering defects in materials and workmanship. If you experience any issues with the product, contact EXESAS directly. Retain your proof of purchase for warranty service.
The EXESAS 324 LED panel is the upper-mid tier option in the EXESAS range — a wider 41" × 15" panel with four wavelengths, dual-chip 42mil LEDs, Meanwell drivers, over 198mW/cm² irradiance, no EMF, remote control, and a linkable design, backed by a 2-year warranty. If you want broader lateral coverage than the 200 LED model at a more manageable power draw than the 800 LED full-body panel, it’s the practical step up in the EXESAS lineup.
