The TLA Pro IV 1500 is a commercial-grade LED light therapy panel built for home users, clinics, and wellness studios that need a compact, high-performance device. With 360 dual-chip LEDs spanning 12 precisely calibrated wavelengths, a dual-chip quad-lens optical system, and full app or LCD control, it delivers consistent, adjustable light therapy sessions for half-body to whole-body coverage.
Why Customers Choose This Product
- 12 independently adjustable wavelengths — red, yellow, blue, and near-infrared
- Dual-chip quad-lens design delivers up to 8 wavelengths per lens
- Power adjustable from 1–100% per wavelength; pulse range 0–9,999 Hz
- App and LCD controls with presets, usage log, and custom voice commands
- Wireless multi-device pairing — control multiple panels simultaneously
- Flicker-free LED drivers for a stable, comfortable light output
- EMF-free at minimum usable distances — UV-free by design
- Class IIa medical device: FDA, CE, and ARTG registered
- 100,000-hour LED lifespan and 4-year manufacturer warranty
- Hanging kit and light-blocking goggles included
Product Highlights
12-Wavelength Light Engine
Independently control 12 wavelengths: 660 nm, 670 nm, 850 nm, 590 nm, 610 nm, 630 nm, 450 nm, 480 nm, 810 nm, 830 nm, 940 nm, and 1060 nm. Each can be adjusted for power (1–100%) and pulse rate (0–9,999 Hz) individually.

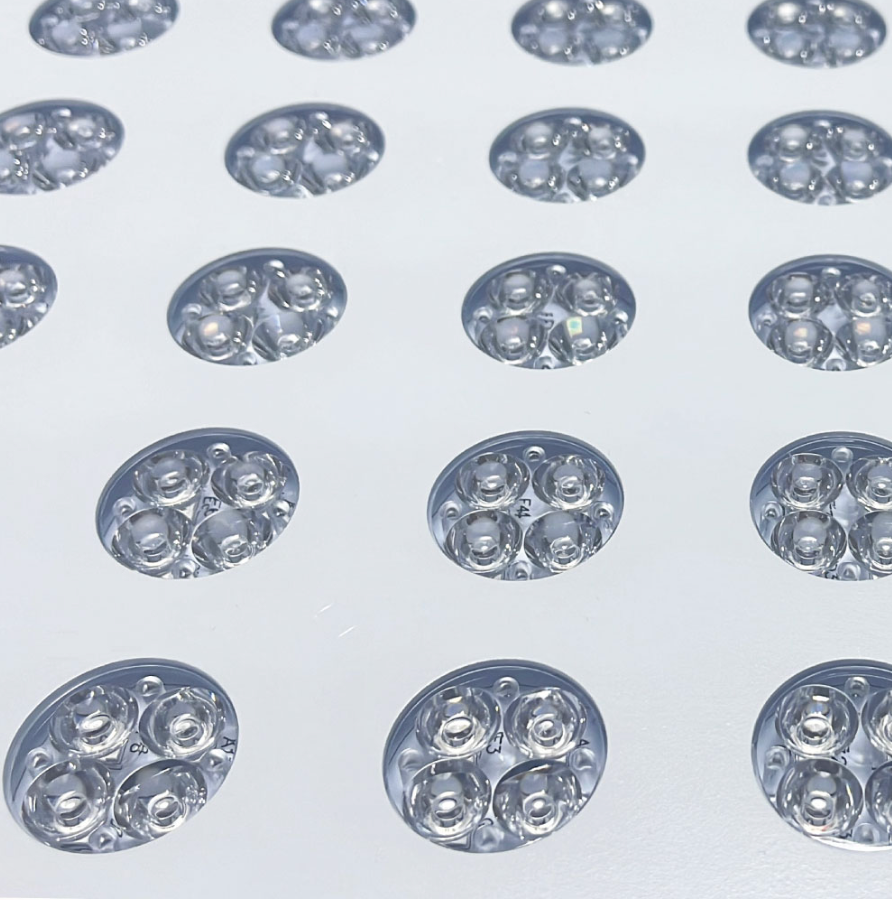

Dual-Chip Quad-Lens Optics
TLA's patented quad-lens design houses 5W dual-chip LEDs that supply up to 8 wavelengths per lens, maximizing light delivery uniformity across the treatment area.
App and LCD Control
Manage sessions from the onboard LCD panel or the companion app, which supports preset programs, a usage log, custom voice commands, and wireless pairing of multiple Pro IV panels for simultaneous control.
Wireless Multi-Device Pairing

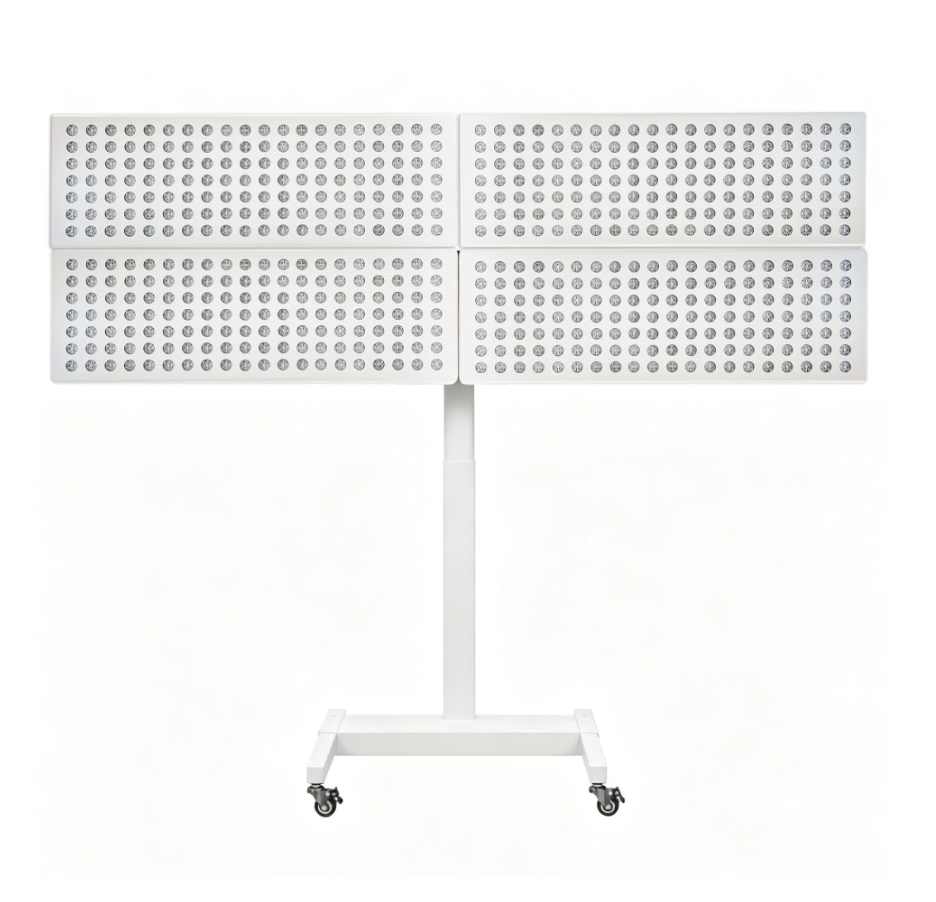

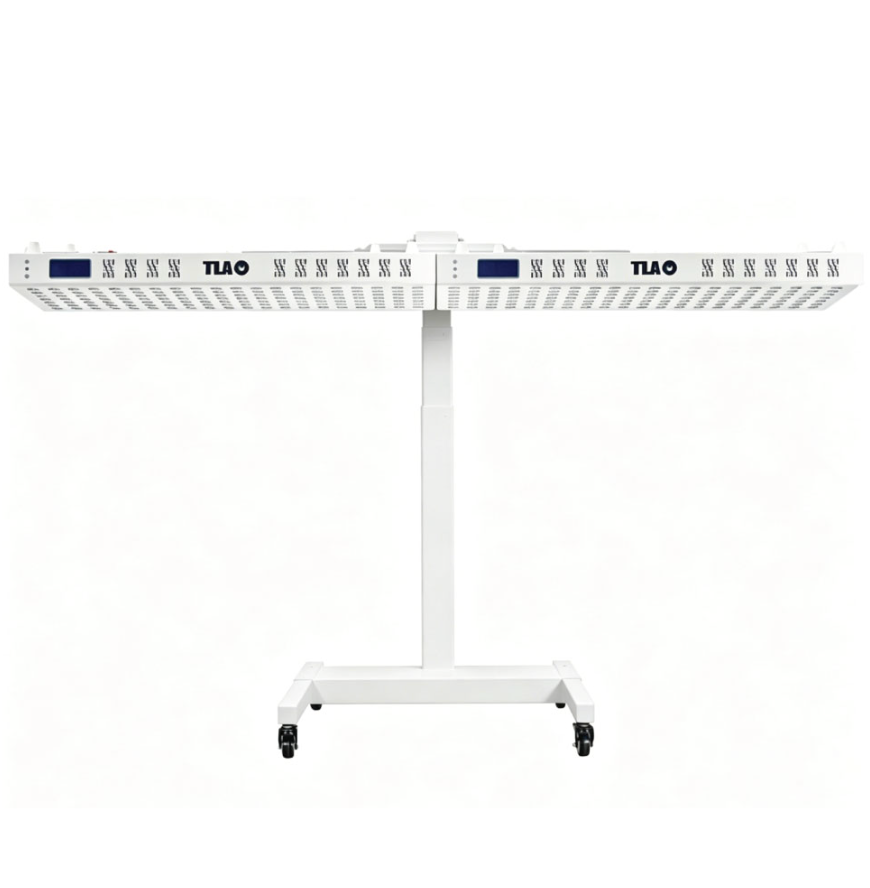

Connect two or more Pro IV panels wirelessly to expand your coverage area and control all units from a single interface — ideal for clinics or users building out a larger setup.
Flicker-Free LED Drivers
All TLA Pro IV 1500 panels use flicker-free drivers, eliminating light fluctuation that can cause visual discomfort during extended sessions.
High Irradiance Output
Delivers over 200 mW/cm² at 5 cm — a high irradiance level suited to focused, professional-grade sessions at home or in a clinical setting.
Versatile Mounting Options

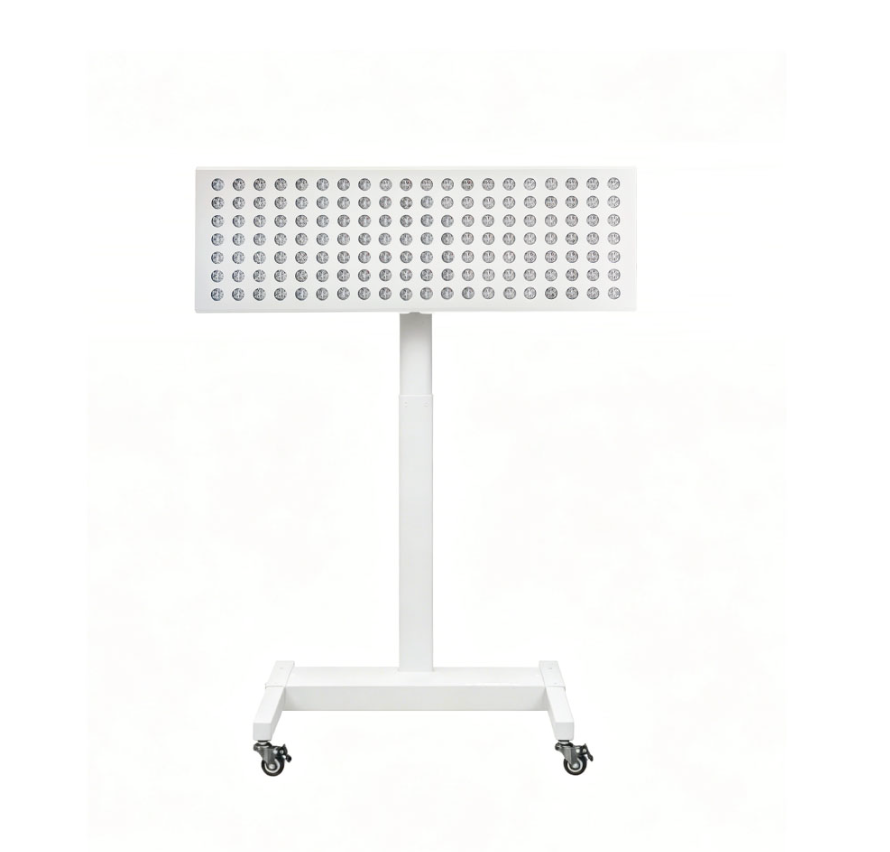

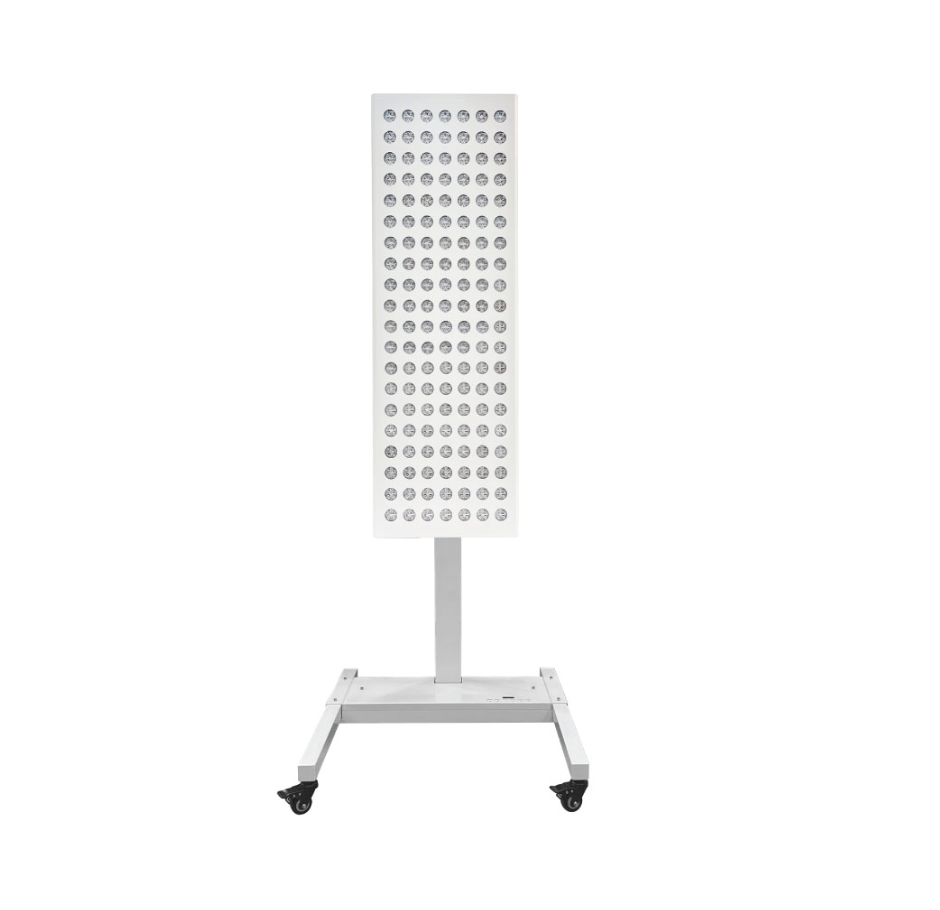

Includes a door hook, pulley system, and vertical and horizontal hanging kits. The new Pro IV stand (sold separately) supports vertical, horizontal, and tilted positioning for targeted session angles.
4-Year Warranty and 100,000-Hour LEDs
Backed by a 4-year manufacturer warranty and LEDs rated to 100,000 hours for long-term, reliable performance.
Specifications
| Model | TLA Pro IV 1500 |
|---|---|
| Wavelengths | 660 nm / 670 nm / 850 nm / 590 nm / 610 nm / 630 nm / 450 nm / 480 nm / 810 nm / 830 nm / 940 nm / 1060 nm |
| LEDs | 360 × 5W dual-chip |
| Rated Wattage | 1,000 W |
| Irradiance | >200 mW/cm² @ 5 cm |
| Beam Angle | 60° |
| Dimensions | 910 mm × 430 mm × 70 mm |
| Weight | 14.5 kg (panel) / ~17.2 kg packaged |
| Cooling Fans | 8 |
| Power Source | Plug-in (power cord included) |
| Material | Metal combination |
| Color | White |
| Body Coverage | Half-body to whole-body |
| Control | LCD touchboard + companion app (voice command, presets, usage log) |
| Pulse Range | 0–9,999 Hz (per wavelength) |
| Power Adjustment | 1–100% (per wavelength) |
| Certifications | Class IIa Medical Device — FDA, CE, ARTG registered |
| LED Lifespan | 100,000 hours |
| Warranty | 4 years (manufacturer) |
| UV Output | None |
| EMF | EMF-free at minimum usable distances |
| In the Box | TLA Pro IV 1500 panel, power cord, user manual (PDF), goggles, door hanging kit, adjustable pulley system |
Ideal For
- Home wellness routines requiring half-body or whole-body coverage
- Physiotherapy, rehabilitation, and recovery clinics
- Yoga studios, gyms, and sports recovery facilities
- Practitioners offering light therapy as a complementary wellness service
- Users scaling a multi-panel setup using wireless pairing
- Anyone seeking a compact, clinically registered device with professional-level controls
Important Information
- Eye protection: Always wear the included light-blocking goggles during sessions. Do not look directly at the LEDs at any time.
- Installation: Review the included user manual and installation guide before mounting. Ensure the mounting surface or stand can safely support the panel weight (14.5 kg).
- Stand compatibility: The TLA Pro IV stand is compatible with this panel but is sold separately and is not included in this package.
- Medical device classification: This panel is a Class IIa medical device. Use strictly in accordance with the provided instructions and applicable local regulations.
- Not a medical treatment: This product is not intended to diagnose, treat, cure, or prevent any disease. Consult a qualified healthcare professional before use if you have a medical condition, are pregnant, or are taking photosensitising medications.
- Quality guarantee: All TLA items are life-tested before dispatch and shipped via insured postage methods.
Frequently Asked Questions
What wavelengths does the Pro IV 1500 include?
The Pro IV 1500 features 12 wavelengths: 660 nm, 670 nm, 850 nm, 590 nm, 610 nm, 630 nm, 450 nm, 480 nm, 810 nm, 830 nm, 940 nm, and 1060 nm. Each wavelength is independently adjustable for power and pulse rate.
Can I control the panel using my phone?
Yes. The companion app provides full control of all wavelengths, power levels, pulse settings, presets, and a usage log. You can also pair multiple Pro IV panels wirelessly and set custom voice commands. An onboard LCD control board is available for sessions without the app.
Can I connect multiple panels together?
Yes. The Pro IV 1500 supports wireless pairing with additional Pro IV panels, allowing you to control all units simultaneously from one interface. This makes it straightforward to expand your setup over time.
Is a stand included with the panel?
A hanging kit is included, featuring a door hook, adjustable pulley system, and vertical and horizontal mounts. The TLA Pro IV stand — which supports vertical, horizontal, and tilted positioning — is compatible but sold separately.
What certifications does the Pro IV 1500 hold?
The Pro IV 1500 is classified as a Class IIa medical device and is registered with the FDA (USA), CE (Europe), and ARTG (Australia), among other regulatory bodies worldwide.
Is the panel safe for the eyes?
The panel emits high-intensity light and must never be viewed directly. Light-blocking goggles are included with every purchase and must be worn during all sessions. The panel emits no UV light.
What warranty does the Pro IV 1500 come with?
The Pro IV 1500 is covered by a 4-year manufacturer warranty. LED components are rated to 100,000 hours of use.
The TLA Pro IV 1500 delivers professional-grade light therapy in a compact, multi-wavelength panel that fits equally well in a home setting or a clinical environment. With wireless multi-device pairing, full app control, and Class IIa registration, it's a well-specified choice for users who want precision and flexibility from their light therapy equipment.
This product is not intended to diagnose, treat, cure, or prevent any disease. Results vary. Consult a qualified healthcare professional before use if you have a medical condition, are pregnant, or are taking photosensitising medications.
